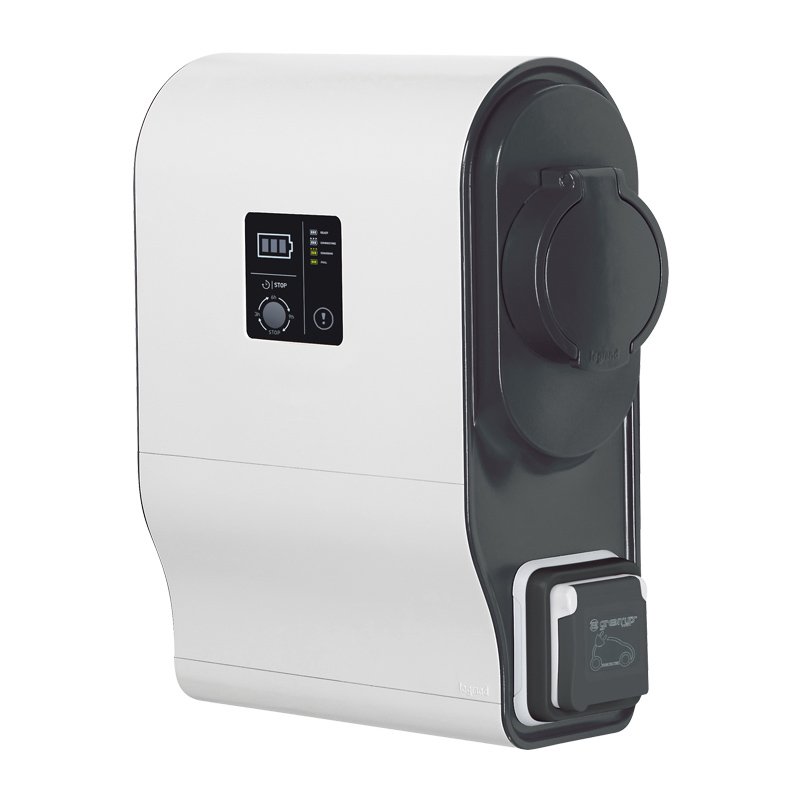

LEGRAND – Borne de recharge Green’up – LEG-059003 – 3,7/4,6 kW – Bluetooth

A French LEGRAND terminal adjustable to 3.7kW or 4.6kW, ideal for your garage

The Legrand wallbox terminal connects to a single-phase 230V – 16A or 20A and is therefore suitable for all homes. It will fit perfectly on your garage wall. Its side-mounted lockable T2S socket will ensure safe charging of your electric car in mode 3. It is lightweight, with an attractive plastic surface, and takes up very little space.

Its power can be adjusted by smartphone to 3.7 or 4.6 kW. Charging times can also be managed by smartphone.

A standard 220V socket is located under the type 2 connector. It will be useful for recharging your electric bike or another electric or plug-in hybrid vehicle, for example.

Its charging power is adjustable to 3.7kW or 4.2 kW.

Recharge

Gain of 15 to 20 km of autonomy per hour of charging.

Main features

• Plug & Play
• Type 2S socket
• Management by Smartphone via bluetooth:
  • Charging current, 16A (3.7kW) or 20A (4.6kW)
  • Charging hours (for charging only during off-peak hours at night, for example)
• Schuko e CEE socket 220V 16A in addition
• Integrated energy meter
• Wall mounting kit included with the terminal

Electrical protections

The following electrical protections are mandatory and must be installed on a dedicated line, with a cable cross-section of 2.5mm² for 20A protection, and 10mm² for 40A protection. They have been validated by electricians and IRVE experts and comply with current French regulations:

• 20A or 40A Type A 30mA differential switch (e.g. HAGER BDH240F ) – mandatory on dedicated line – not included
• 25A Curve C circuit breaker (e.g. HAGER MJT725 ) – mandatory, to be coupled with the differential – not included
• 230/415V current release (mandatory for ZE Ready) (e.g. HAGER MZ203 ) – not included

User interface

• Free access: plug it in and charging starts automatically
• Multi-color LED indicator showing charging status
• Bluetooth communication and management
